Hey there! As a supplier of titanium square bars, I often get asked about how to join two titanium square bars together. It's a crucial process, especially for those working on projects that require strong and durable connections. In this blog, I'll share some common methods and tips to help you achieve a successful joint.
Why Joining Titanium Square Bars Matters
Titanium square bars are widely used in various industries like aerospace, automotive, and medical due to their excellent properties such as high strength, low density, and good corrosion resistance. When you're working on a project, you might need to combine two or more bars to meet specific length or shape requirements. A proper join ensures the structural integrity and performance of the final product.
Common Joining Methods
Welding
Welding is one of the most popular ways to join titanium square bars. It creates a strong, permanent bond between the bars. There are different welding techniques you can use:
- Tungsten Inert Gas (TIG) Welding: This is a precise method that uses a non - consumable tungsten electrode to create the weld. The weld area is protected by an inert gas, usually argon, to prevent oxidation. TIG welding is great for thin - walled titanium square bars as it allows for good control over the heat input. You can get a clean and high - quality weld with TIG welding.
- Plasma Arc Welding (PAW): Similar to TIG welding, but it uses a constricted plasma arc. PAW can penetrate deeper and is more efficient for thicker bars. It also provides better control over the weld pool, resulting in a more consistent joint.
However, welding titanium requires some special considerations. Titanium is very reactive at high temperatures, so you need to ensure a proper shielding gas environment. Any contamination can lead to a weak weld. Also, pre - and post - weld heat treatments might be necessary to relieve stress and improve the mechanical properties of the joint.
Brazing
Brazing is another option for joining titanium square bars. In brazing, a filler metal with a lower melting point than the base metal (titanium) is used. The filler metal is heated until it melts and flows into the joint by capillary action.
The advantage of brazing is that it doesn't require as much heat as welding, which can reduce the risk of distortion. It's also suitable for joining dissimilar metals. But you need to choose the right filler metal that has good compatibility with titanium. The joint strength in brazing is usually lower than that of a welded joint, but it can still be sufficient for many applications.
Mechanical Fastening
If you don't want to use welding or brazing, mechanical fastening is a simple alternative. You can use bolts, nuts, and screws to hold the two titanium square bars together.
The main benefit of mechanical fastening is its reversibility. You can easily disassemble the joint if needed. It's also a quick and straightforward method. However, mechanical fasteners can add extra weight to the structure, and there might be stress concentrations around the fastener holes, which could potentially lead to cracking.
Preparation Before Joining
Before you start the joining process, proper preparation is essential:
- Cleaning: Thoroughly clean the surfaces of the titanium square bars to be joined. Any dirt, grease, or oxide layer can affect the quality of the joint. You can use solvents like acetone to clean the surfaces, followed by a light abrasion to remove the oxide layer.
- Fitting: Make sure the two bars fit together properly. The gap between the bars should be as small as possible. You can use clamps or fixtures to hold the bars in place during the joining process.
Tips for a Successful Join

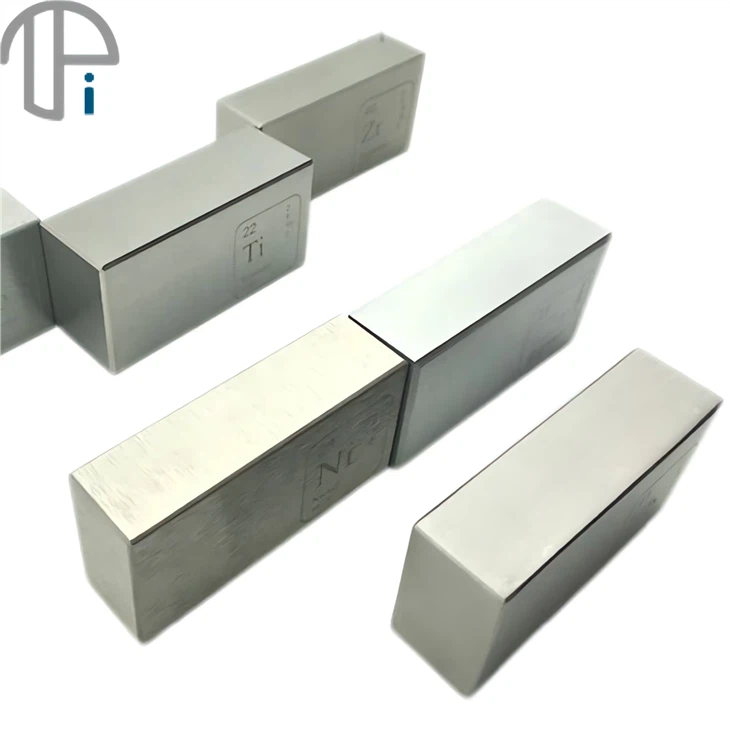

- Choose the Right Grade of Titanium: We offer different grades of titanium square bars, such as Gr1 Titanium Square Bar, AMS 4928 Titanium Square Bar, and Gr5 Titanium Square Bar. Each grade has different properties, so choose the one that suits your application and joining method.
- Control the Heat: Titanium is sensitive to heat. Too much heat can cause grain growth and reduce the mechanical properties of the joint. Use the appropriate heat input for the joining method you choose.
- Quality Assurance: After joining, inspect the joint for any defects such as cracks, porosity, or lack of fusion. Non - destructive testing methods like X - ray or ultrasonic testing can be used to detect internal defects.
Conclusion
Joining two titanium square bars can be a bit challenging, but with the right method, proper preparation, and attention to detail, you can achieve a strong and reliable joint. Whether you choose welding, brazing, or mechanical fastening, make sure to follow the best practices.
If you're in the market for high - quality titanium square bars or have any questions about joining them, feel free to reach out. We're here to help you with your project and can provide you with the right products and advice. Contact us for more information and to start a purchase negotiation.
References
- "Titanium: A Technical Guide" by John R. Boyer, George W. Welsch, and E. W. Collings
- "Welding Metallurgy" by John C. Lippold and David K. Miller
