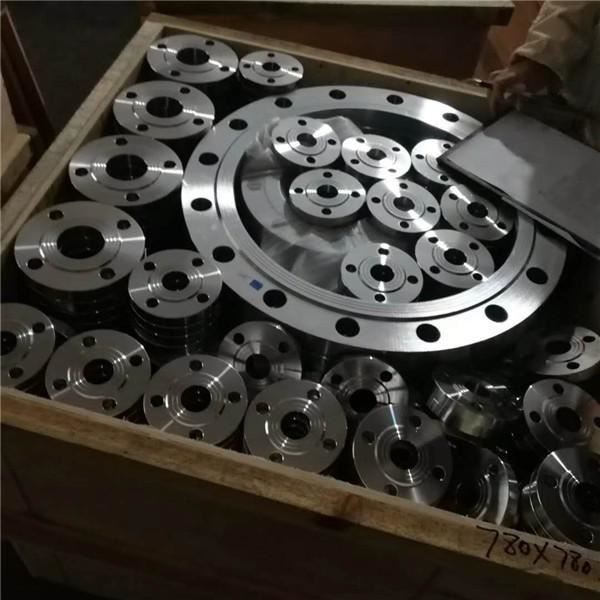

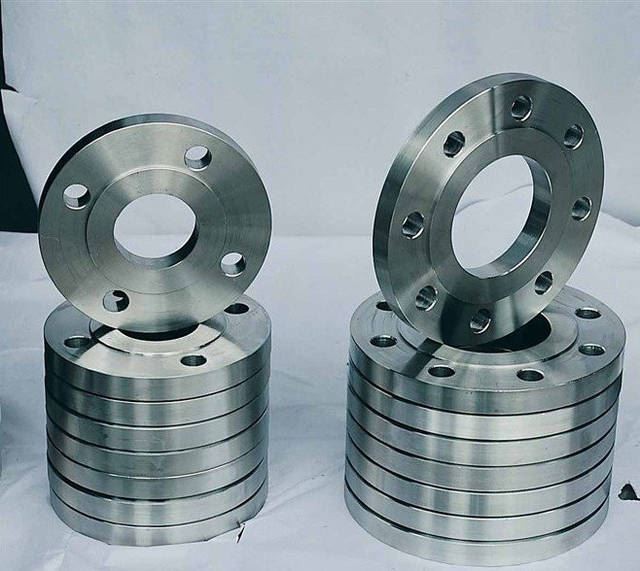

Titanium Flange
1.Product Description
| Material | Titanium Gr1 (3.7025), Gr2 (3.7035), Gr7 (3.7235), Gr12 (3.7105), Nickel UNS N02200 (2.4066), UNS N02201 (2.4068) |
| Size | 1/2"-48" Schedule 5s to Schedule 80 |
| Standard | ASME B16.5, EN 1092, JIS 2201, AWWA C207, ASME B16.48 |
| Type | PL, BL, WN, LP, SO, spectacle etc |
| Mating rate | Class 150-1200LBS, PN 1.0-4.0 Mpa |
| Month capacity | 6000 pieces |
| Tests | UT, DPI |
| Face | RF, FF, FMF, RJ, Groove etc |
| Cerfificate | EN 10204-3.1 |
2.The usage of various Titanium Flange detailed description
(1)Gr1 can be used in the drawing parts for its good elongation and excellent corrosion-resistance.
(2)Gr2 is used most widely in the commercially pure titanium.
(3)Gr3 is almost used in pressure,vessel.
(4)Gr4 can be used in some fittings parts and fastening pieces, but for complex shape need 300 degree celsius to form.
(5)Alloy Gr5 widely used in the titanium alloys because of its comprehensive mechanical and chemical properties.
(6)Alloy Gr7 add little palladium in cp titanium and it has the most excellent corrosion-resistance,of course it costs higher.
(7)Alloy Gr9(Ti-3Al-2.5V)is the most widely used in the golf clubs and bicycle girders.
(8)Alloy Gr23,ELI(extra low interstitial),can be used in the medical appliance.
