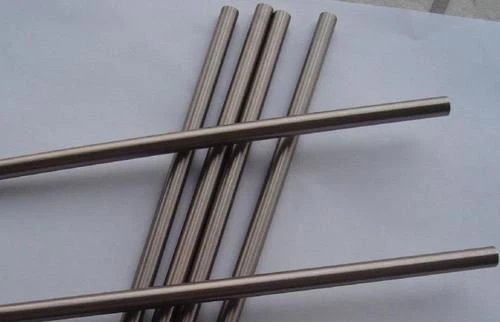

Medical Cannulated Titanium Bar

Cost control-manufacturing and exporting by ourselves.
Competitive price-without middleman.
Quality guarantee-SGS, Mill Test Certificate, the third party test as request.
On-time delivery--Large production capability per month and developed logistics.

Send Inquiry

Description

Titanium Alloy Bar/Rod

Titanium bar

◆Grade GR1 GR2 GR5
◆Titanium rod production specifications：diameter (3.0~200)*length(500~6000)
◆Titanium rod production status： Hot working state(R)Cold working state(Y)Annealed state(M)Solid solution state(ST)

American Standard

ASTM B348,ASTM F136

Titanium rod manufacturing process

Hot rolling, hot forging, turning (polishing)

use

Mainly used in mechanical equipment, electroplating equipment, medical, various precision parts and other industries

Production Process

Extruded

Technical Information:

We are capable of supplying all grades of commercial pure titanium and titanium alloys in accordance with AMS, ASTM specification or equivalent.

Item Name	medical cannulated titanium bar
Standard	ASTM B348,ASTM F136,ASTM F67,GB/T 2965--2007
Grade	Gr1,Gr2,Gr5
Diameter	Outside Diameter: 16/14/13/12/8/6/5.5 mm Inside Diameter: 5/4.5/4/3.5/2.5/1.8/1.5 mm
Surface	Polishing
Technology	Forged, Rolling
Shape	Round,square,hexagonal
Delivery status	Heat treatment Cold forming Annealing treatment
Application	Peducle screw,locking screw
Features	High strength Fine corrosion resistance Low density, light weight High/low temperature resistance High resistance to strong acid alkali

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	bal
Gr3	0.05	0.08	0.015	0.30	0.35	/	/	/	/	/	bal
Gr4	0.05	0.08	0.015	0.50	0.40	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.4	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.17	/	/	bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	bal
