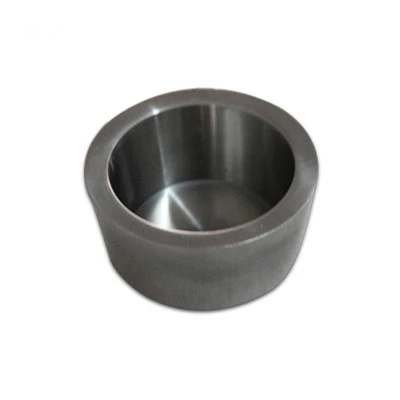

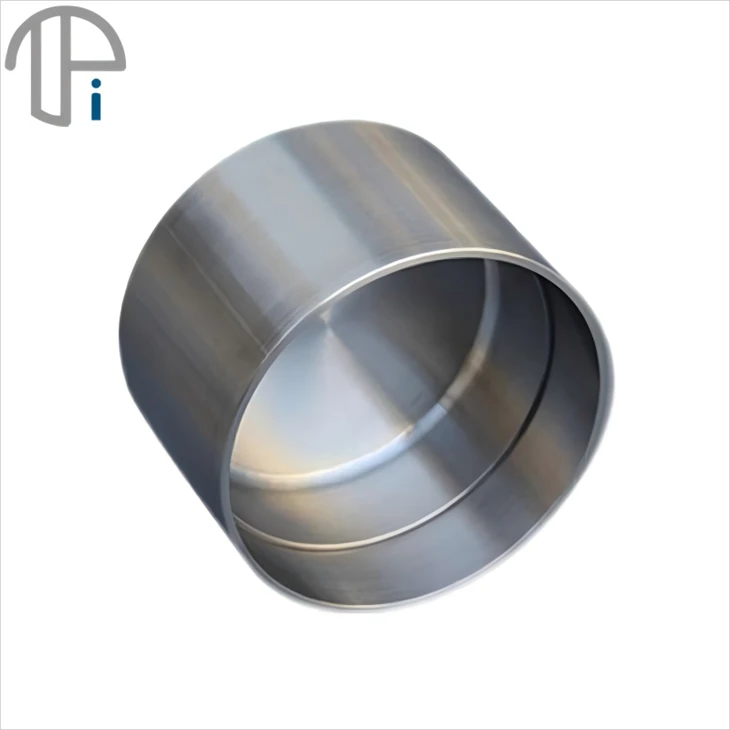

Molybdenum crucibles for melting
Molybdenum Crucibles For Melting
Grade:Mo1, 361
Density:10.2g/cm3
Purity: 99.95% min.
Melting point: 2610 Centigrade
Working temperature:1300-1400C
Size: User's demand
Technique: Forged or Sintered
Surface: Bright
|
Forged molybdenum crucible |
|||||||
|
Purity |
Density |
Sizes |
Tolerance |
Wall thickness | roughness | ||
|
99.95% |
≥10.1g/ cm3 |
Dia(mm): 10-500 |
Height(mm): 10-750mm |
Dia: +/-0.5mm |
Height: +/-1.0mm
|
4-20mm |
Ra=1.6mic |
|
Sinter molybdenum crucible |
|||||||
|
Purity |
Density |
Sizes |
Tolerance |
Wall thickness | roughness | ||
|
99.95% |
≥9.8g/ cm3 |
Dia(mm): 10-500 |
Height(mm): 10-750mm |
Dia: +/-5.0mm |
Height: +/-5.0mm
|
8-20mm |
Ra=1.6mic |
Feature
1. Low thermal expansivity
2. High using temperature
3. Good corrosion resistence
4. High strength
5. Low electrical resistivity
6. Manufacturing based on customer's request
Application
1.Widely used in melting metals, such as steel, aluminum, etc.
2.Widely applied in high temperature vacuum furnace melting environment such as sapphire growing furnace, quartz glass melting furnace, and rare earth melting furnace.
3.Also used in industries as following:
Ceramics, metallurgical, machinery processing and light industry.

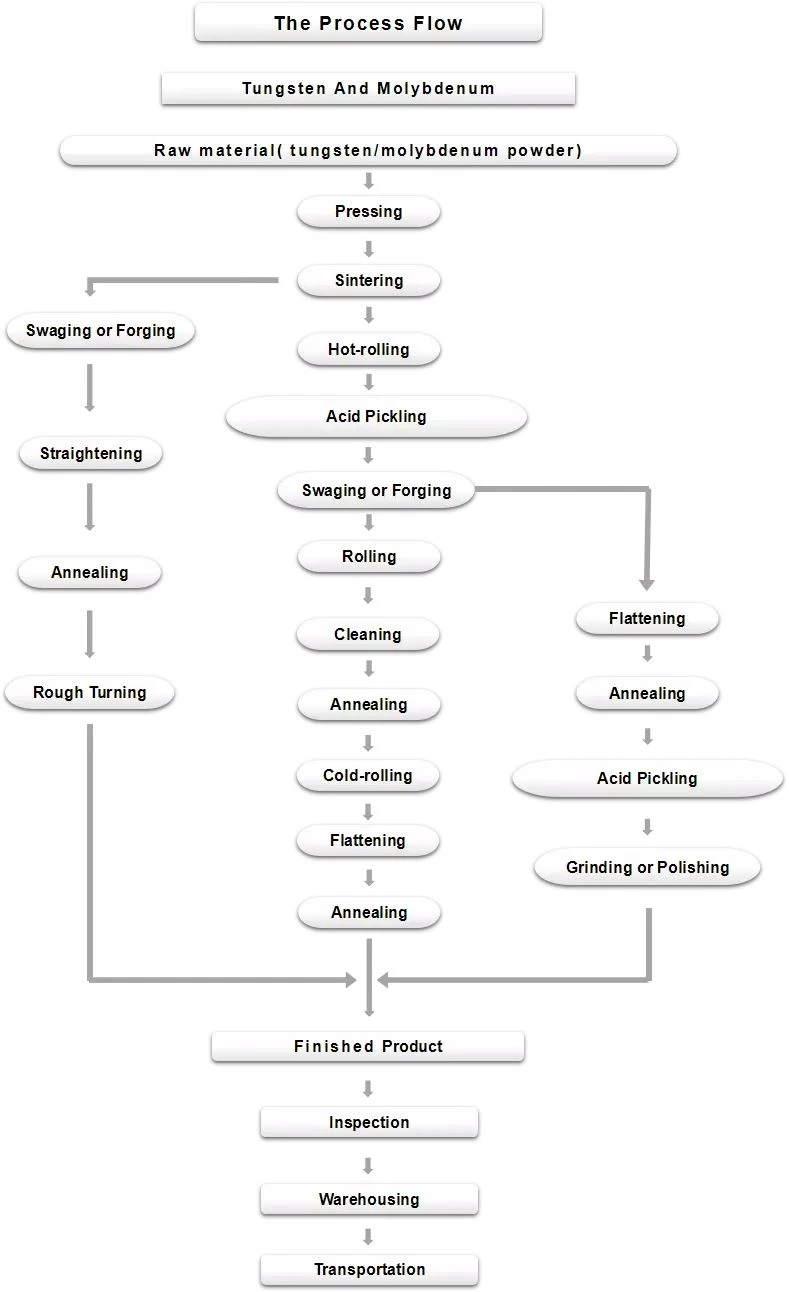

Technological Process
FAQ
